Tab terminals – efficient and durable connections on Duraseal

The tab terminal series on Duraseal offers a fast and reliable solution for electrical connections. These flat connectors provide a strong and secure connection, ideal for applications in the automotive industry, electrical engineering, and machine construction. Thanks to the insulated design, they are resistant to vibrations, moisture, and corrosion, significantly extending the lifespan of the connection.

The B-106-4631 and B-106-4632 variants differ in wire size capacity and dimensions, ensuring a suitable solution for every application. The high-quality crimp connection guarantees optimal conductivity and a firm attachment. Browse the full range on Duraseal.nl and find the right tab terminal for your project.

High-Quality with TE Connectivity Raychem

The flat connectors are part of the TE Connectivity Raychem range, which guarantees high quality and durability. These flat connectors remain reliable even under vibrations and fluctuating temperatures. In addition, we also offers DuraSeal waterproof crimp connectors and DuraSeal crimp connectors with adhesive, which provide a strong and waterproof seal. This makes them particularly suitable for automotive applications and other demanding environments.

Product overview Tab terminals

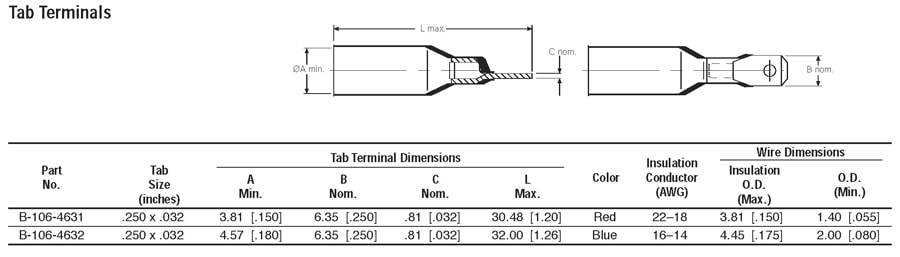

Eigenschap B-106-4631 B-106-4632
Tabmaat .250 x .032 .250 x .032
A (mm) 3.81 4.57
B (mm) 6.35 6.35
C (mm) .81 .81
L (mm) 30.48 32.00
Kleur Rood Blauw
Draadmaat (AWG) 22–18 16–14
Isolatiediameter (Max.) 3.81 4.45
Isolatiediameter (Min.) 1.40 2.00

Specifications/approvals & installation requirements

Series Certification UL and CUL Registered with Lloyd’s File Number
B-106 TE 91J4, File E87681 RB-108 65 247 HH 02-93
B-106-3XXX/B-106-4XXX UL and CUL E157833 – –

Select the correct size for terminal and disconnect connections, strip the wire 6.5 mm (1/4 inch).
Crimp using the AD-1522 crimping tool for pre-insulated crimp connections.
Heat the terminal or disconnect with a hot air gun until the tube recovers and the adhesive flows. Avoid heating the ring or fork of metal parts.

For the correct installation of these devices, the correct crimping tool and heating instrument with reflector attachment must be used. The AD-1522 crimping tool and HL1920E/HL2020E heating instruments are recommended. Refer to the TE installation procedure RPIP-684-00 for detailed instructions.
