Shrinkable wire pins from Duraseal – reliable electrical connections
Shrinkable wire pins at Duraseal.nl – reliable electrical connections
With the crimpable pin terminals from Duraseal.nl, you choose a durable and stable connection that meets the highest quality standards. Discover our range and ensure reliable electrical connections for your next project.

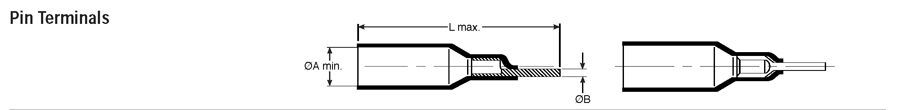

Product overview of pin terminals
| Feature | Value |
|---|---|
| Part number | B-106-6201 |
| Color | Red |
| Insulation A | 3.81 |
| Insulation B | 2.00 |
| Length (L) | 30.99 |
| Conductor (AWG) | 22–18 |
| Outer diameter (Max.) | 3.81 |
| Inner diameter (Min.) | 1.40 |
Specifications/approvals & installation requirements
| Series | Certification | UL and CUL | Registered with Lloyd’s | File Number |
|---|---|---|---|---|
| B-106 | TE | 91J4, File E87681 | RB-108 | 65 247 HH 02-93 |
| B-106-3XXX/B-106-4XXX | UL and CUL | E157833 | – | – |
Select the correct size for terminal and disconnect connections, strip the wire 6.5 mm (1/4 inch).
Clamp using the AD-1522 crimp tool for pre-insulated crimp connections.
Heat the terminal or disconnect with a heat gun until the tubing shrinks and the adhesive flows. Avoid heating the ring or fork of metal parts.
For the proper installation of these devices, the correct crimp tool and the heating instrument with reflector attachment must be used. The AD-1522 crimp tool and the HL1920E/HL2020E heating instruments are recommended. Please refer to the TE installation procedure RPIP-684-00 for detailed instructions.
